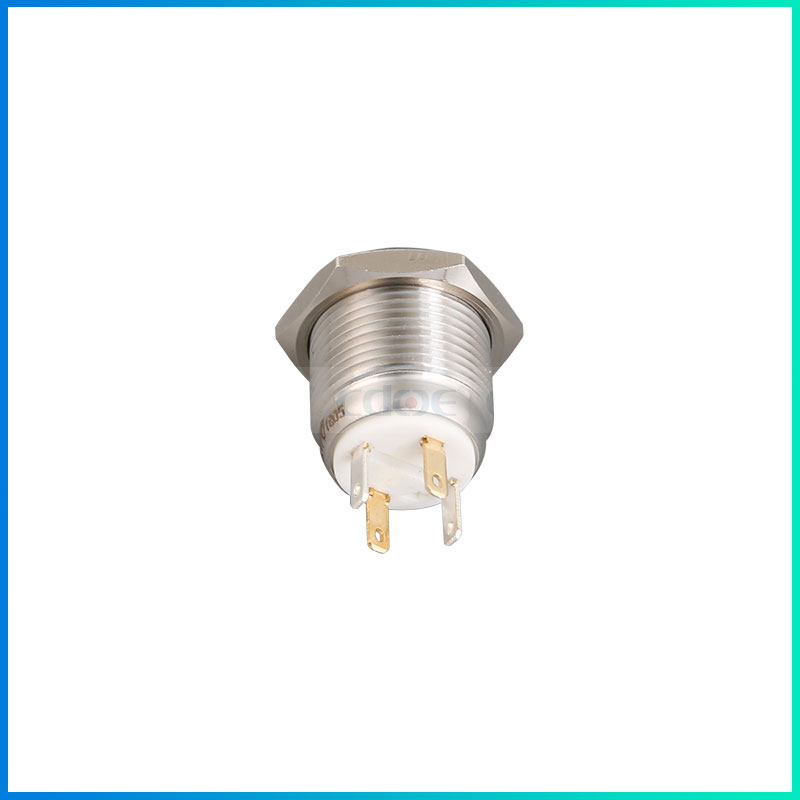

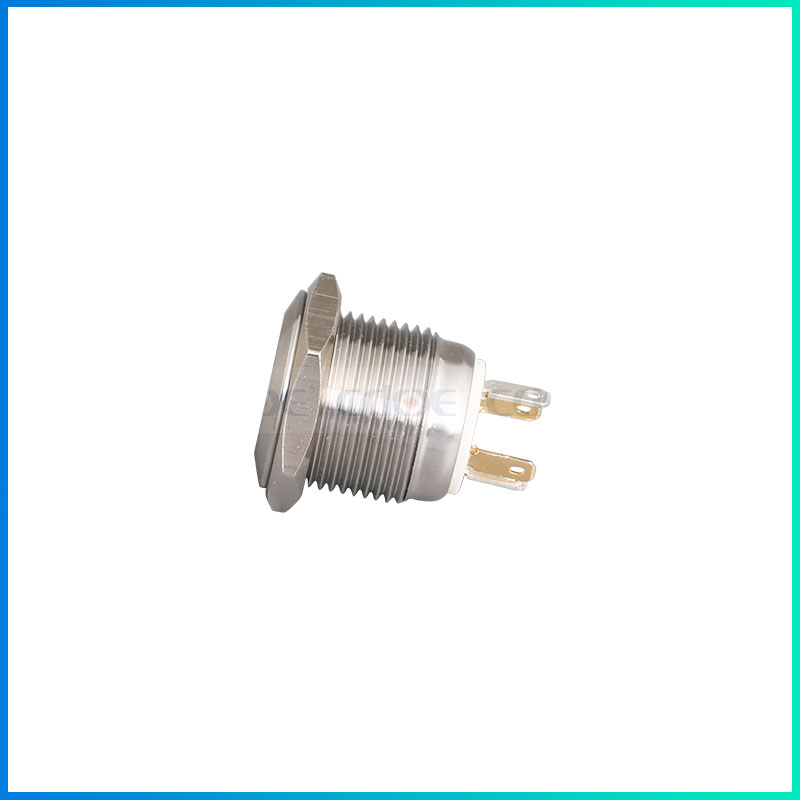

Anti vandal push button switches 16mm ring led momentary waterproof for Hotel doorbell

4 Pin terminal

IP65 waterproof level

SPST momentary pushbutton

Impact strength of IK09

Mist-shaped lamp beads, emitting uniform light

Anti vandal 304 Stainless steel shell material

Product Overview:

Upgrade your control panels with our anti vandal push button switches, designed for durability and style. With a 16mm mounting hole,a rating of 3A/250V and Push button switch head waterproof rating IP65.

Robust Stainless Steel Construction

Constructed from high quality 304 stainless steel, our anti vandal push button switches are built to withstand harsh environments and resist vandalism. The durable shell material ensures long-lasting performance.

Secure  Pin Terminal Contact

Our anti-vandal push button switches feature a secure pin terminal contact design, ensuring stable and reliable electrical connections. This robust terminal configuration minimizes the risk of interruptions or faults, providing peace of mind in critical applications.

Enhanced Visibility with LED Indicator

Equipped with a ring LED indicator available in red, green, or blue colors, our anti vandal push button switches provide enhanced visibility in any environment. With LED voltages ranging from 6v to 220v, these switches offer clear status indication for improved usability.

Upgrade your control panels with our stylish and durable anti vandal push button switches. Featuring a 16mm mounting hole, 3A/250V rating, stainless steel shell material, pin terminal contact, ring LED indicator, and a choice of LED colors and voltages, these switches combine functionality and aesthetics for a superior user experience.

Parameter:

Basic parameterModel:HBDGQ16F-10E/J/S
 Mounting hole:16MM
 Head type:Ring LED
 Shell material:Stainless steel
 Case colour:Silver
Ambient conditionIP front protection:IP65
 Operating temperature:-25℃-+65℃
Electrical characteristicsContact type:1NO
 Rated voltage:3A/250V
 Electrical life:1,000,000 cycles of operation
Mechanical characteristicsOperation type:Momentary
 Terminal type:Plug in terminal
 Terminal material:Silver plated brass(Switch Terminal),Gold plated brass(LED terminal)
 Tightening torque:Fixing nut 0.6 Nm
LED optionsIlluminated color options:Red,Green,Blue
 Illuminated voltage options:6V 12V 24V 220V
 LED life:50,000 hours

Application :

This Anti vandal push button switches 16mm product is widely used in ATM alarm devices, music guitars, buses, doorbell speakers, motorcycles, tractors and other equipment.
