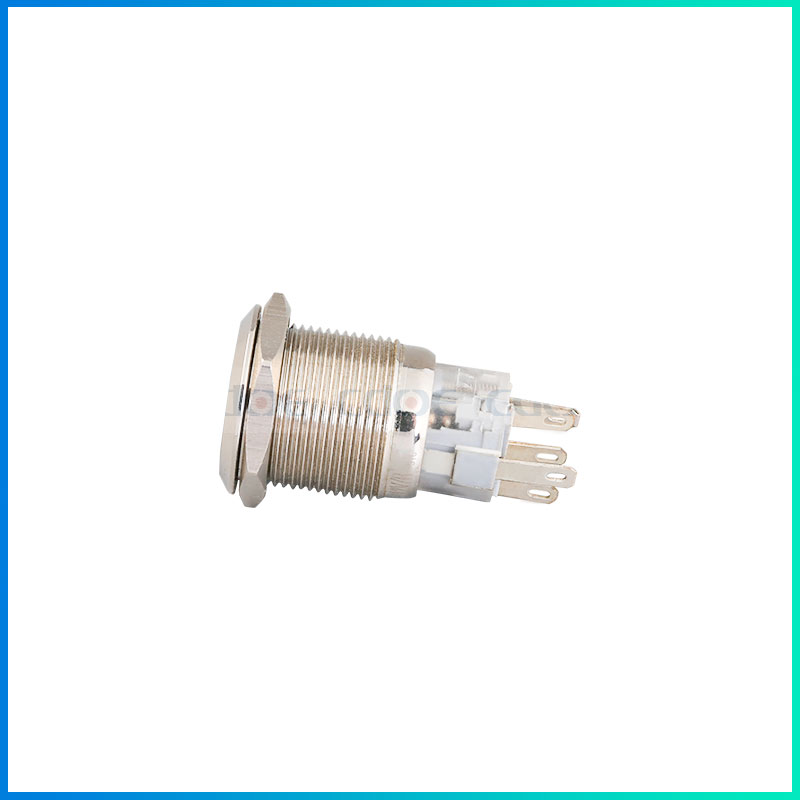

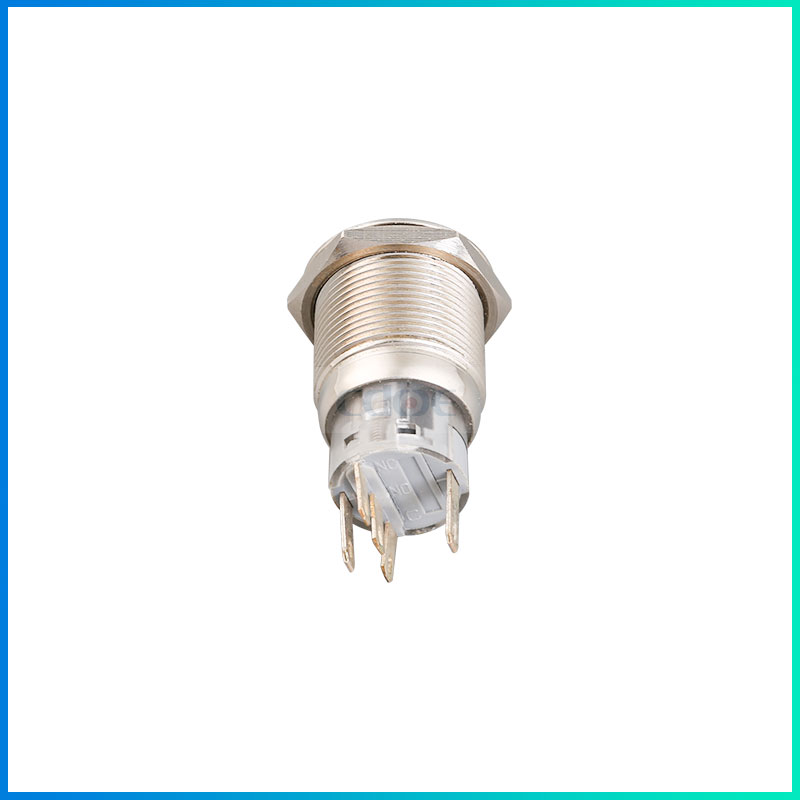

CDOE Power Waterproof ip67 push button switches 19mm 1no1nc illuminated latching

UL, CE, CCC certification

IP67 waterproof level

SPDT、DPDT momentary or latching pushbutton

Impact strength of IK09

Ring and power symbol illuminated head type

Stainless steel shell material

Product Overview:

Introducing our waterproof IP67 push button switches, designed to withstand harsh environments while providing reliable operation. With a mounting hole of 19mm and a rating of 5A/250V, these switches are ideal for applications where durability and performance are paramount.

High-Quality Construction

Constructed from high-quality stainless steel, our waterproof IP67 push button switches are built to last.The rugged shell material ensures resistance to corrosion and damage, making these switches suitable for use in outdoor or industrial settings.

Multiple Contact Options

Our waterproof IP67 push button switches are available with multiple contact options, including 1NO1NC or 2NO2NC configurations. This versatility allows for flexibility in circuit design and application requirements, ensuring compatibility with a wide range of systems.

Plug in terminal

Featuring Plug in terminal contact, our waterproof IP67 push button switches provide secure and reliable connections. The Plug in terminal design ensures stable electrical connections, minimizing the risk of interruptions or faults in critical applications.

Flexible Switch Action

With both momentary and latching switch actions available, our waterproof IP67 push button switches offer flexibility in operation. Whether it’s temporary activation or continuous control, these switches provide precise and reliable performance in various applications.

LED Indicator Options

For enhanced visibility, our waterproof IP67 push button switches are equipped with LED indicators available in red, green, blue, yellow, or white colors. With LED voltages ranging from 6v to 220v, these switches provide clear status indication in any environment.

Overall, our waterproof IP67 push button switches combine durability, reliability, and versatility to meet the demands of various applications. With their 19mm mounting hole, 5A/250V rating, stainless steel shell material, multiple contact options, Plug in terminal contact, flexible switch actions, and LED indicator options, these switches offer superior performance in challenging environments.


Basic parameterModel:HBDS1-AGQ19F-11ET(Z)/J/S
 Mounting hole:19MM
 Head type:Ring and power symbol
 Shell material:Stainless steel
 Case colour:Silver
Ambient conditionIP front protection:IP67
 Operating temperature:-25℃-+65℃
Electrical characteristicsContact type:1NO1NC
 Rated voltage:5A/250V
 Electrical life:1,000,000 cycles of operation
Mechanical characteristicsOperation type:Momentary,Latching
 Terminal type:Plug in terminal
 Terminal material:Silver plated brass
 Tightening torque:Fixing nut 0.6 Nm
LED optionsIlluminated color options:Red,Green,Blue,White,Orange
 Illuminated voltage options:6V,12V,24V,220V
 LED life:50,000 hours

Application :

This Waterproof ip67 push button switches 19mm product is widely used in control boxes, machine tool equipment, yachts, speakers, tractors, purifiers and other industries.
